Concrete Fencing Gold Coast
A Quality Fence Adds More Value Than It Costs
Tilt Panels — 110mm solid concrete

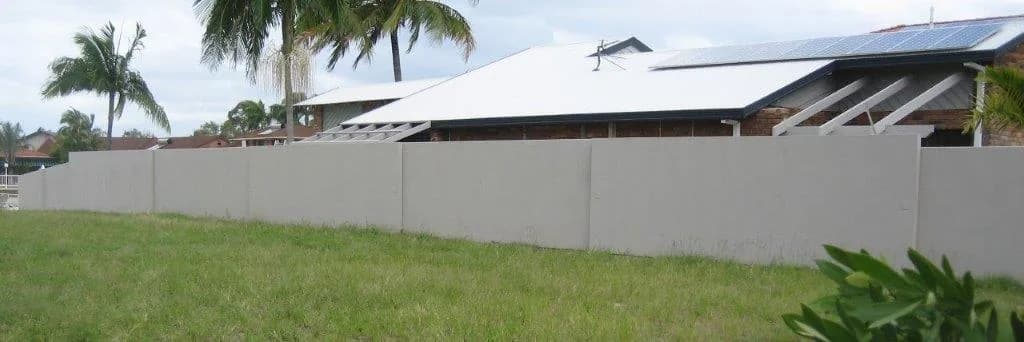

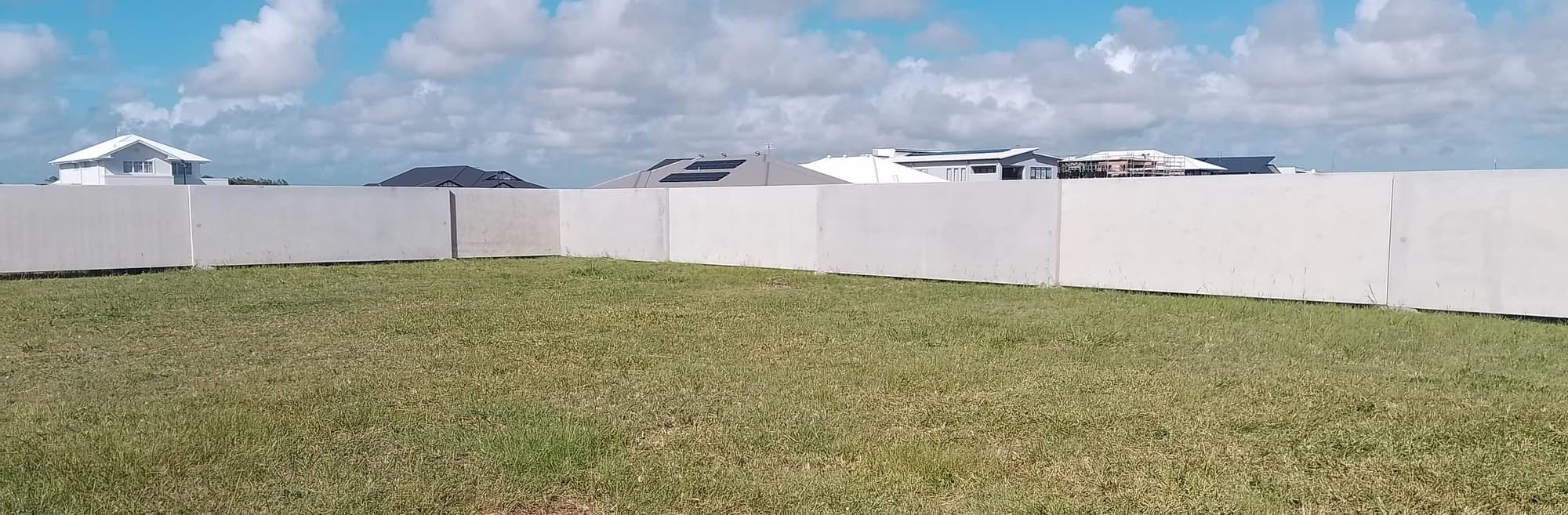

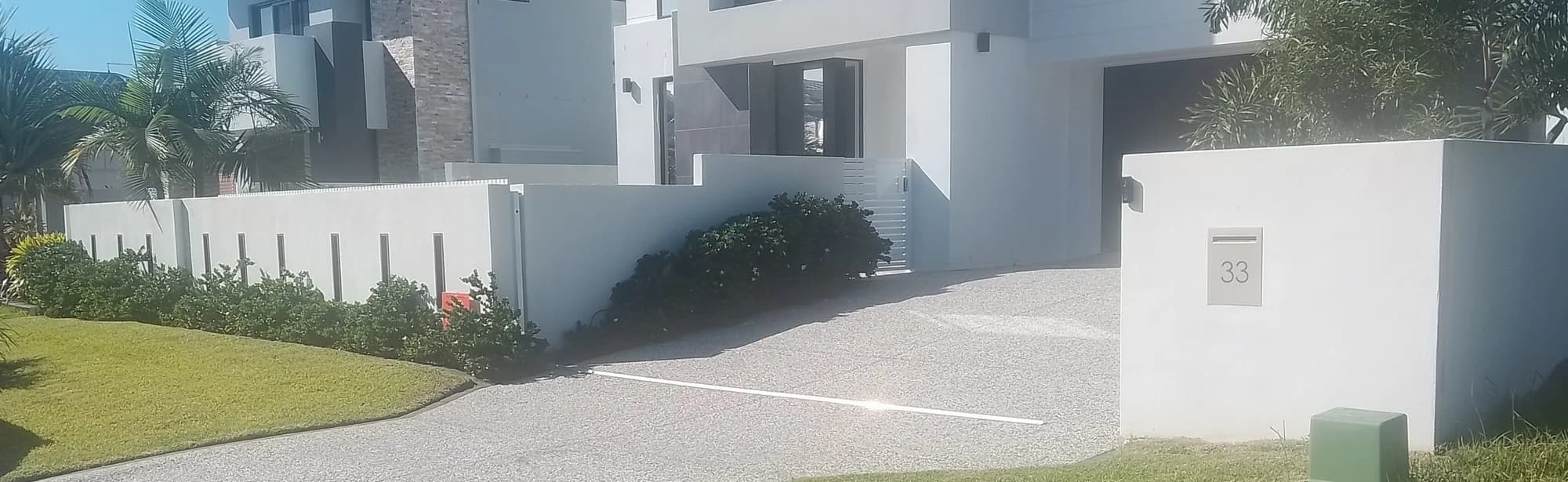

Tilt Panel Boundary Fencing
Solid Reinforced Concrete — 110mm Thick
- Best fence for noise control. Thicker than Motorway Noise Barriers.
- Strong and durable. Will last the life of the house.
- Low maintenance.
- Maximum privacy.
- Minimum site disruption.
Ideal for Side Fences

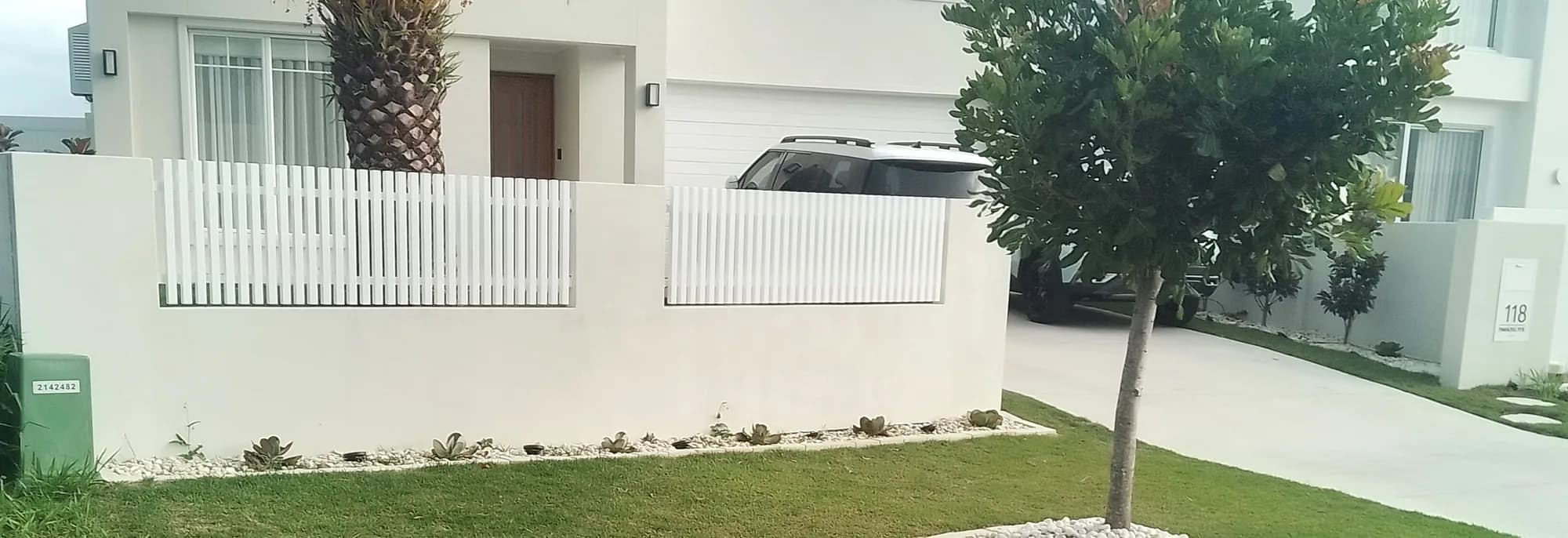

Ideal for Front Fences and very Cost Effective
Fabrication to installation
The Process
Every panel is cast, cured, and delivered in the same sequence — from footing to finished wall.
01

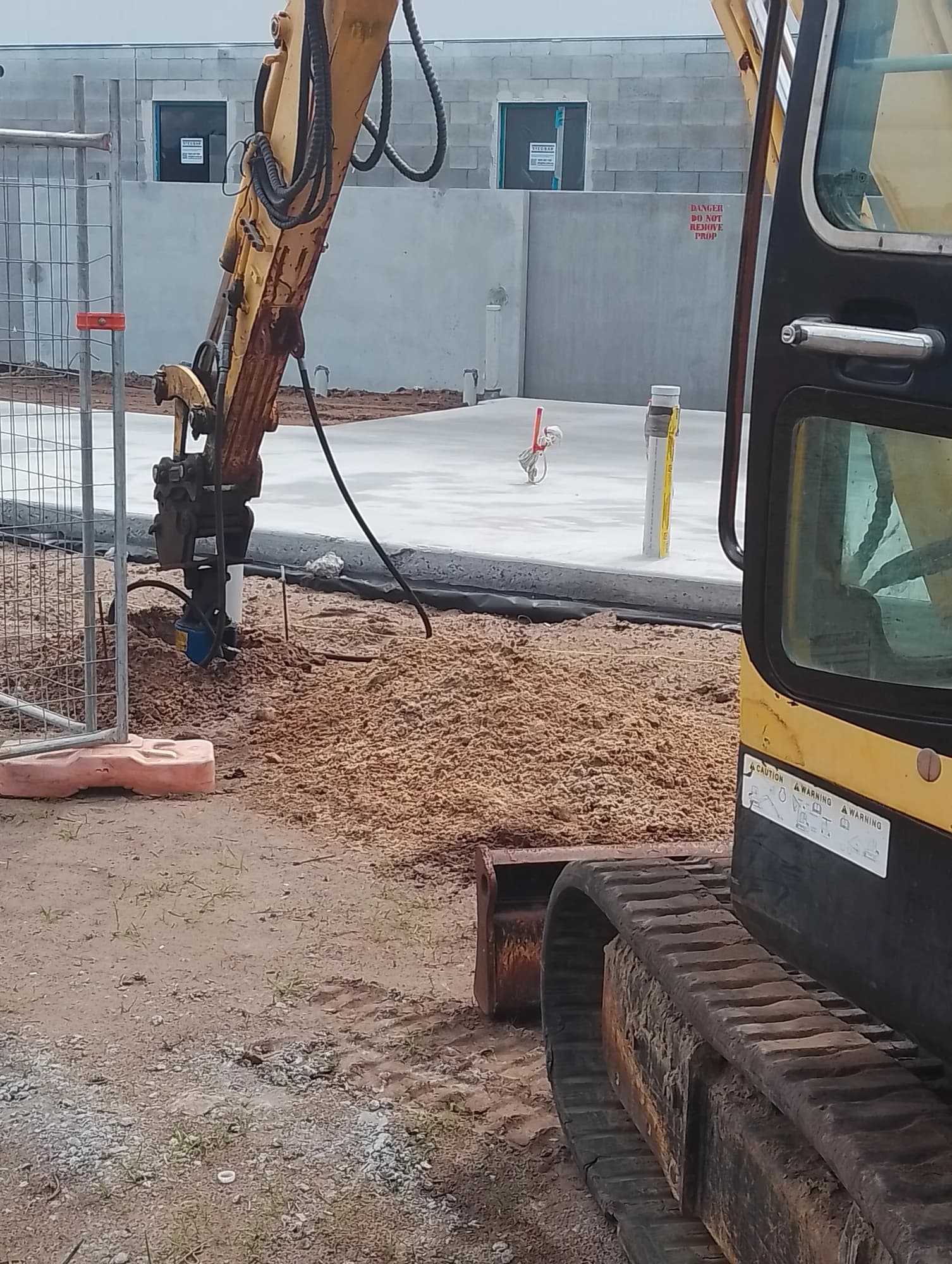

Footing Holes
02

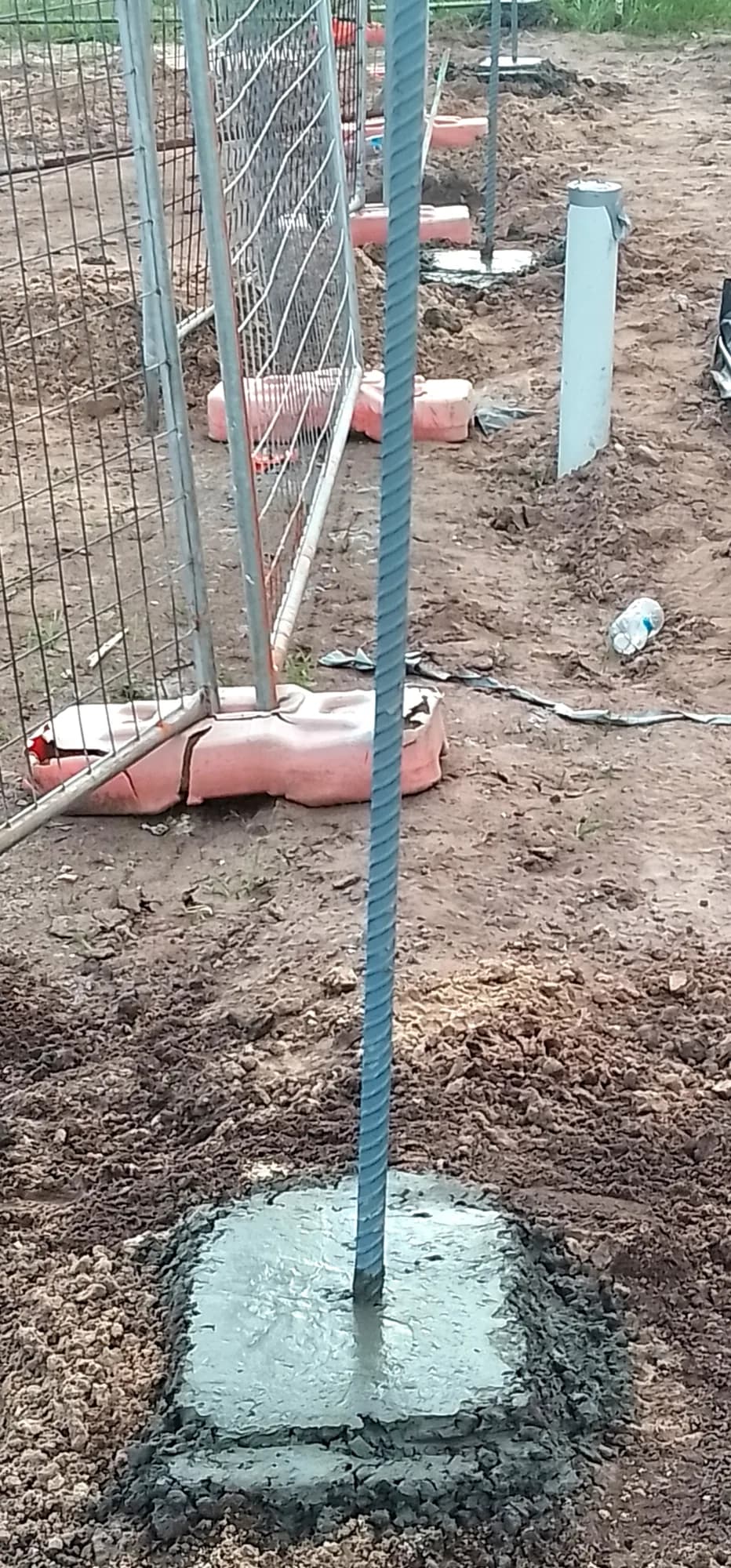

Footing Complete
03

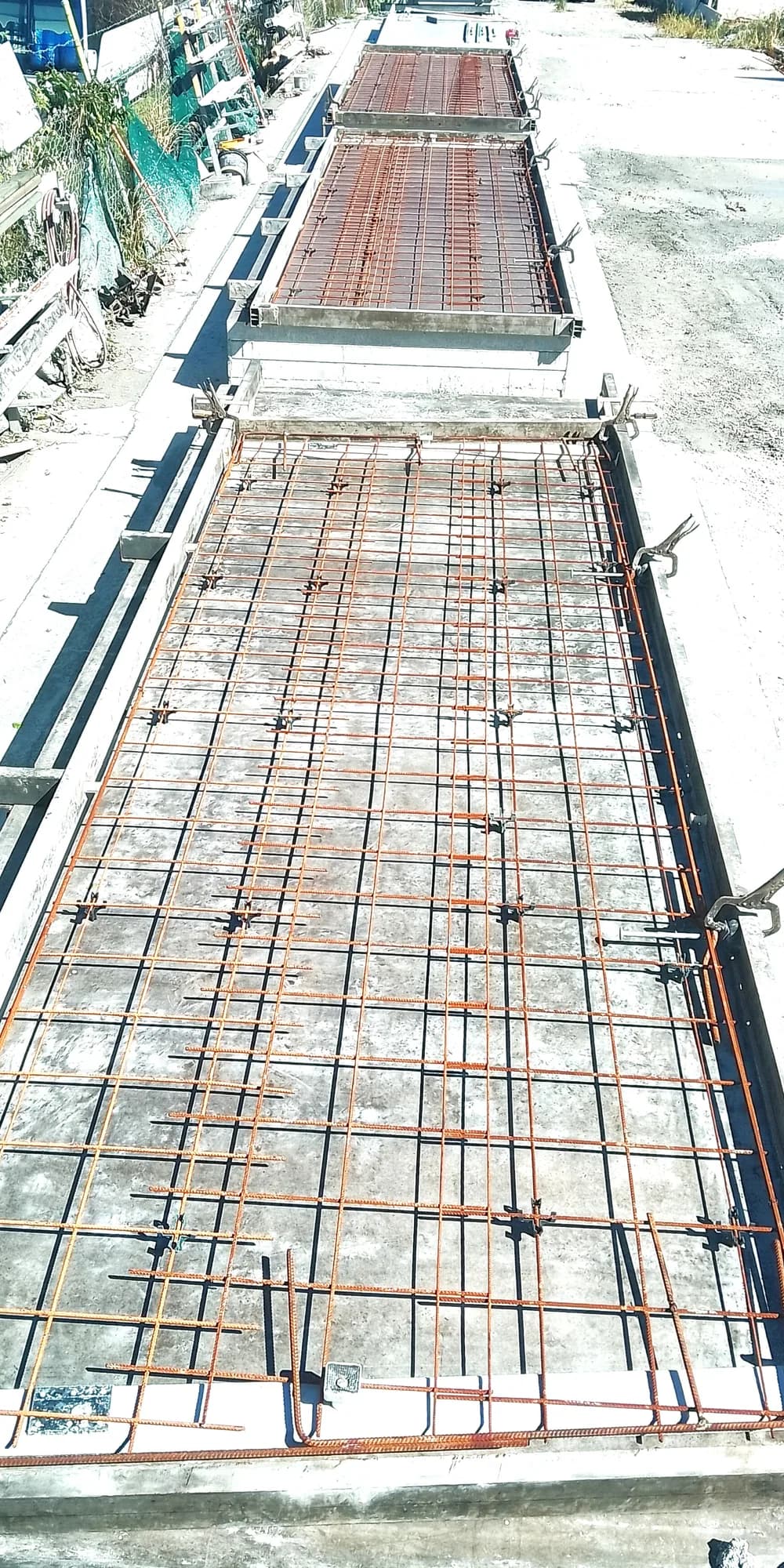

Rebar in Panels
04

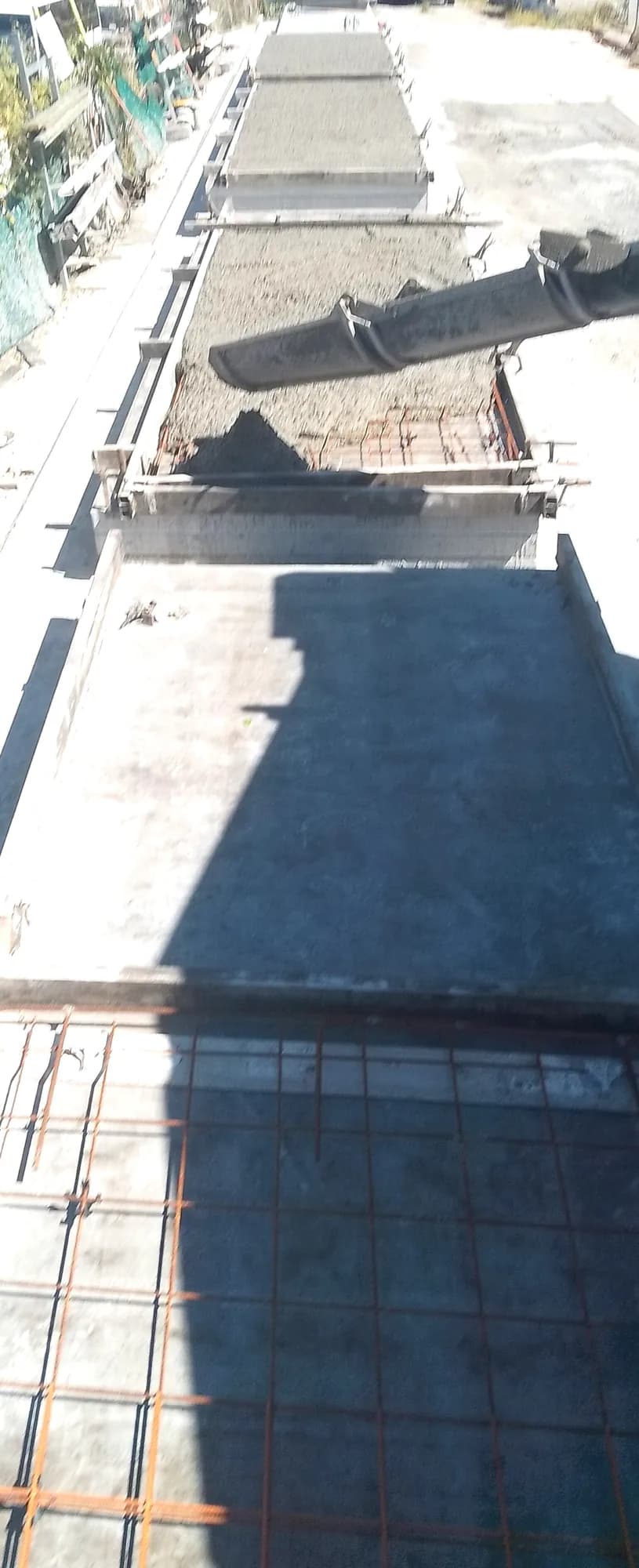

Pouring Concrete
05

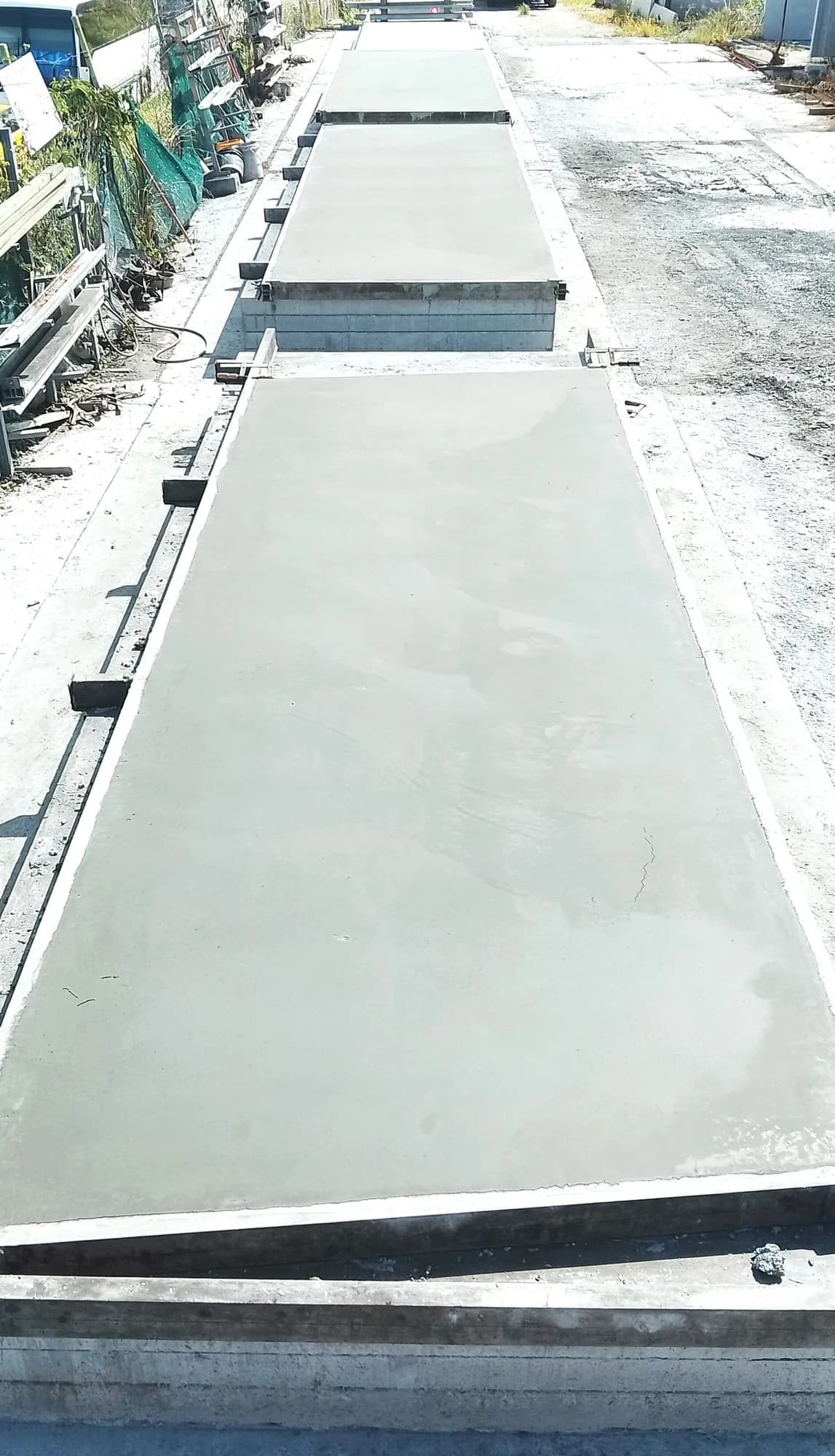

Panels Finished
06

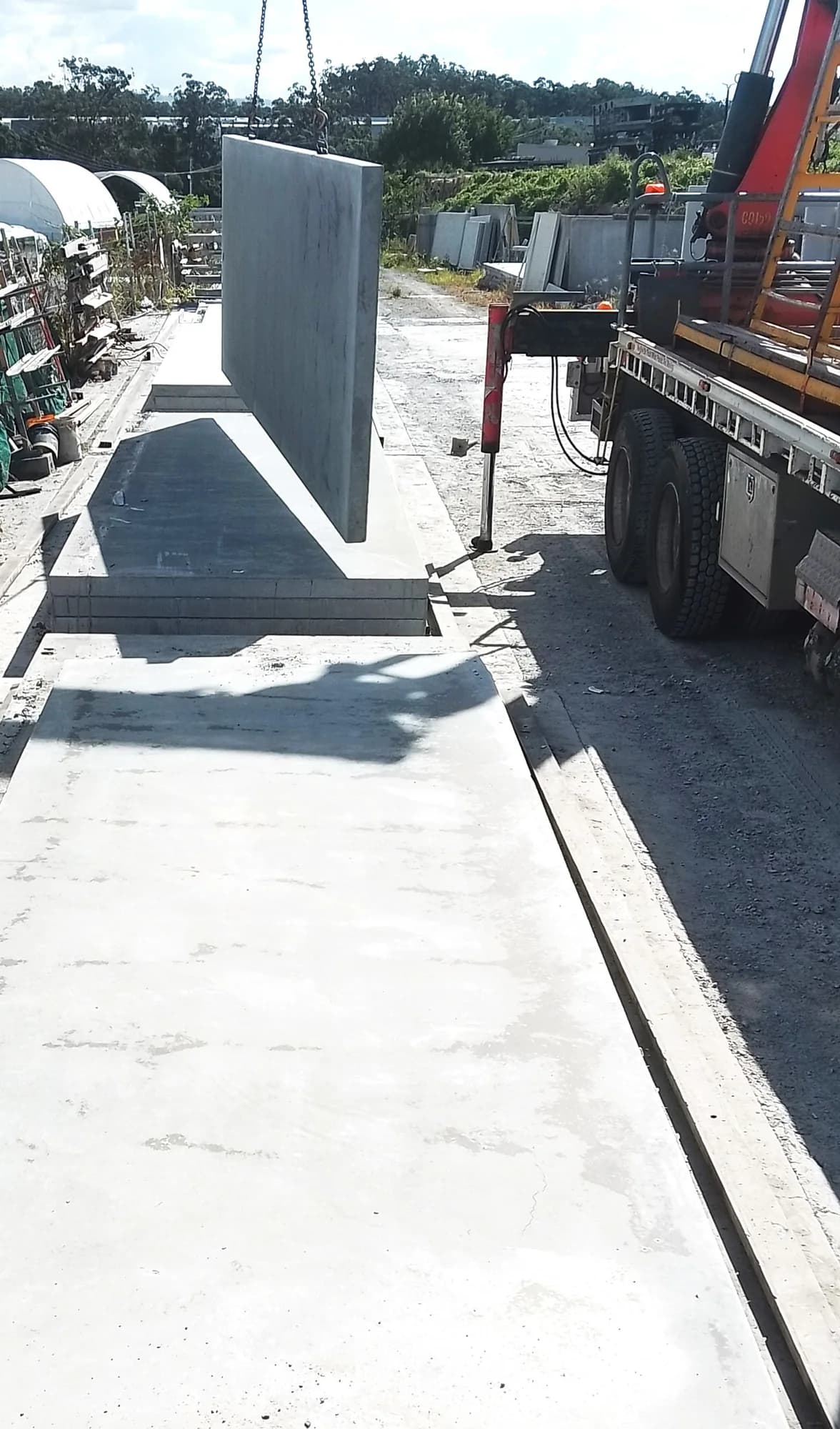

Loading for Delivery
07

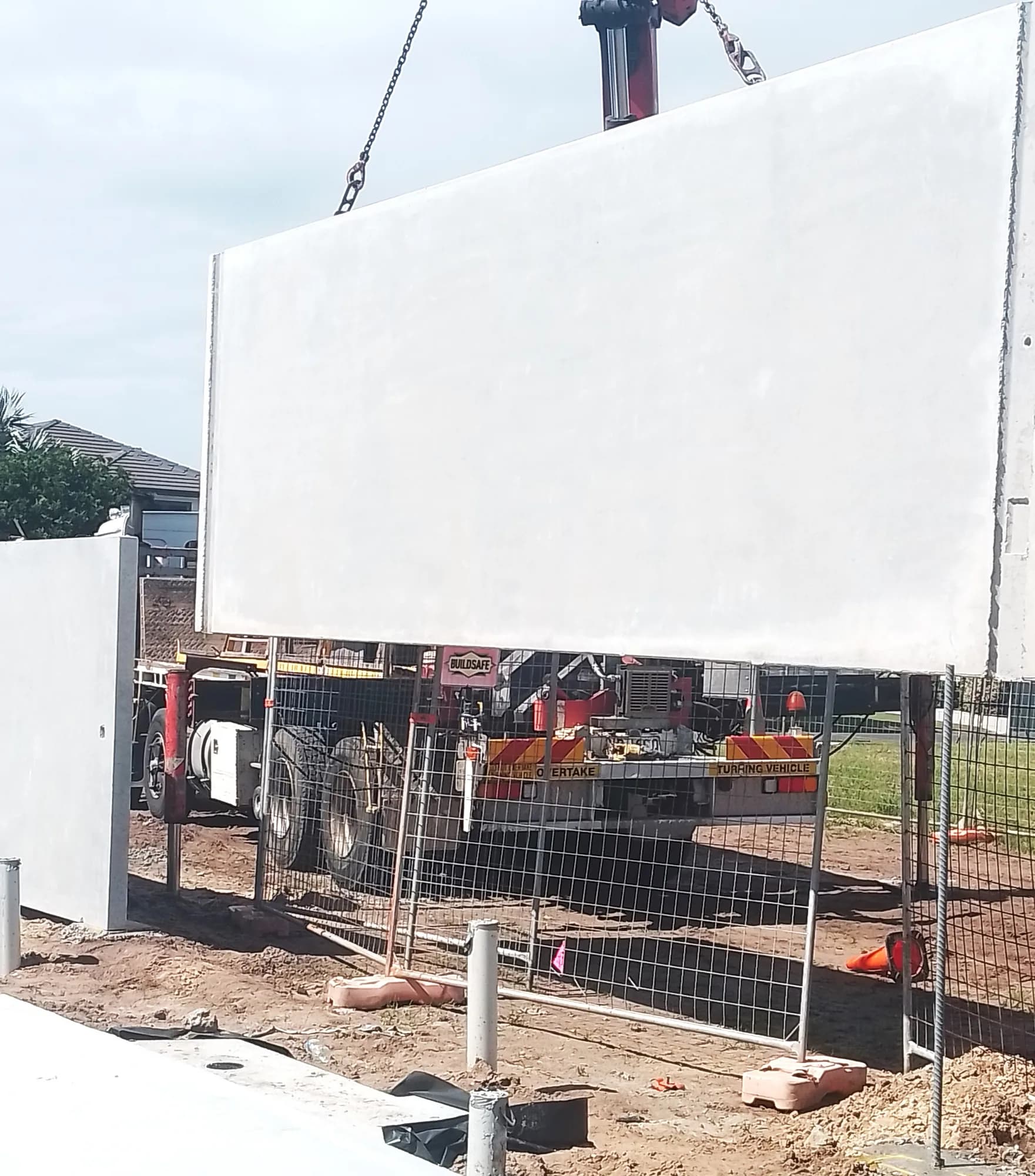

Installing at Site
08

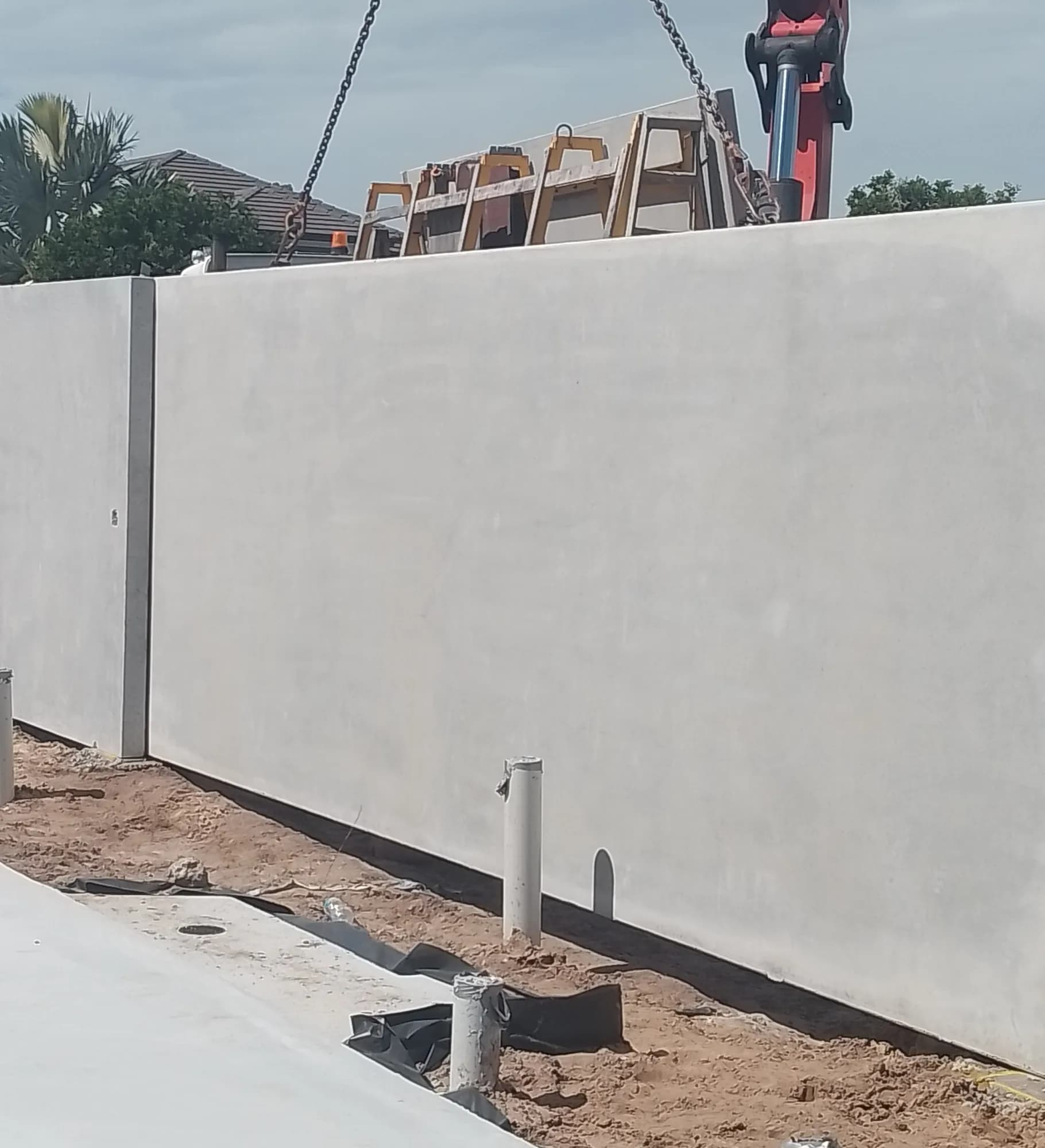

Install Complete

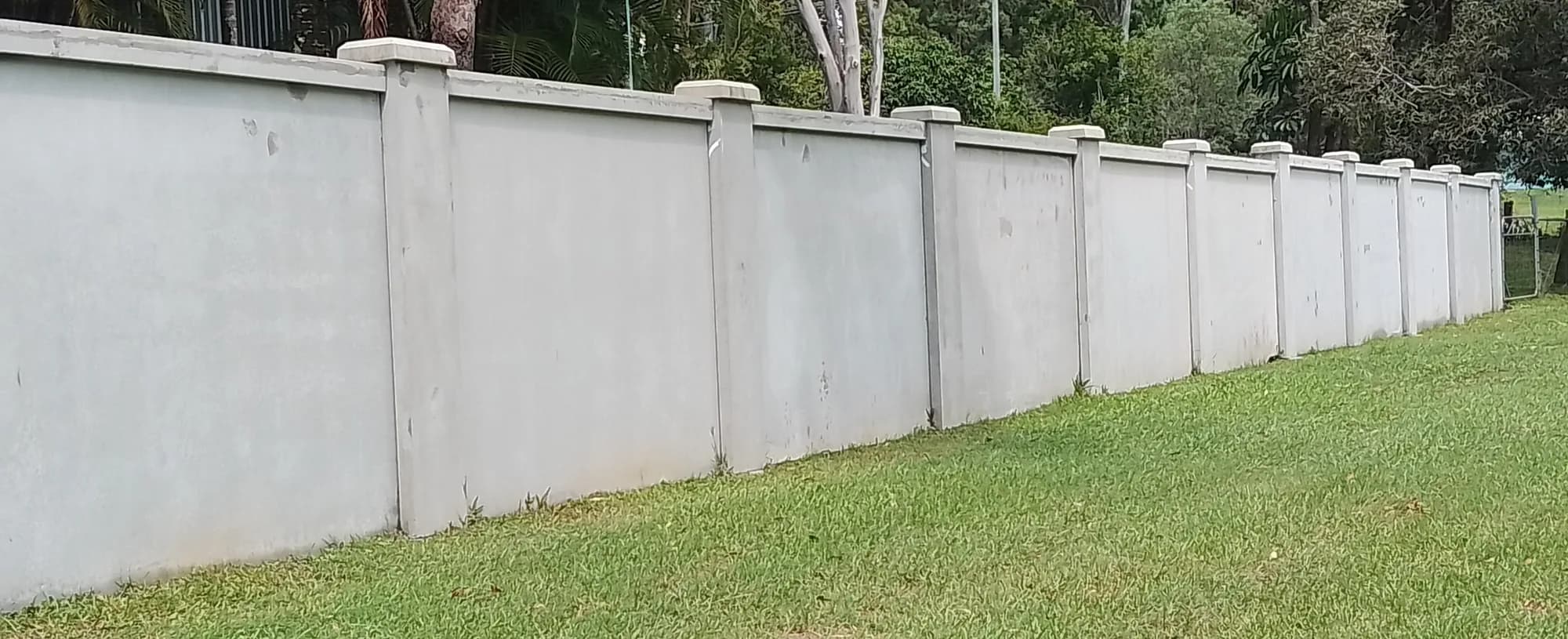

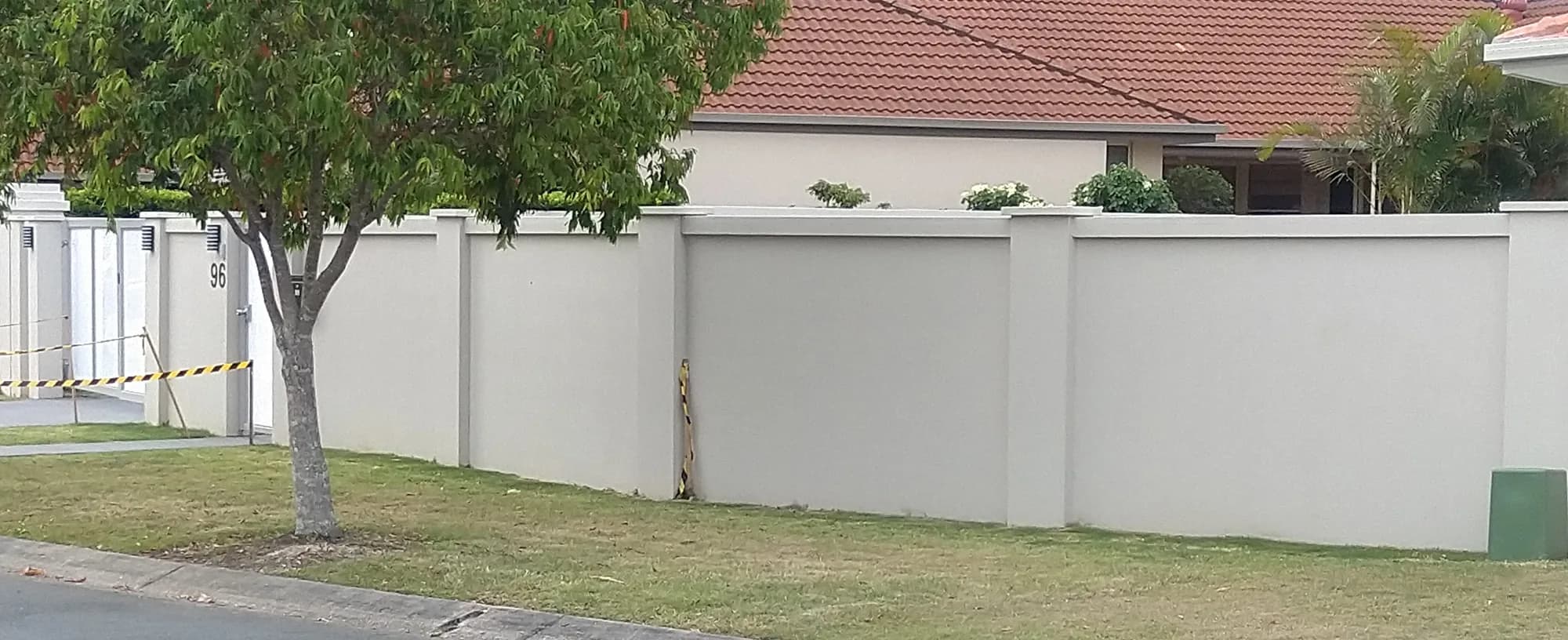

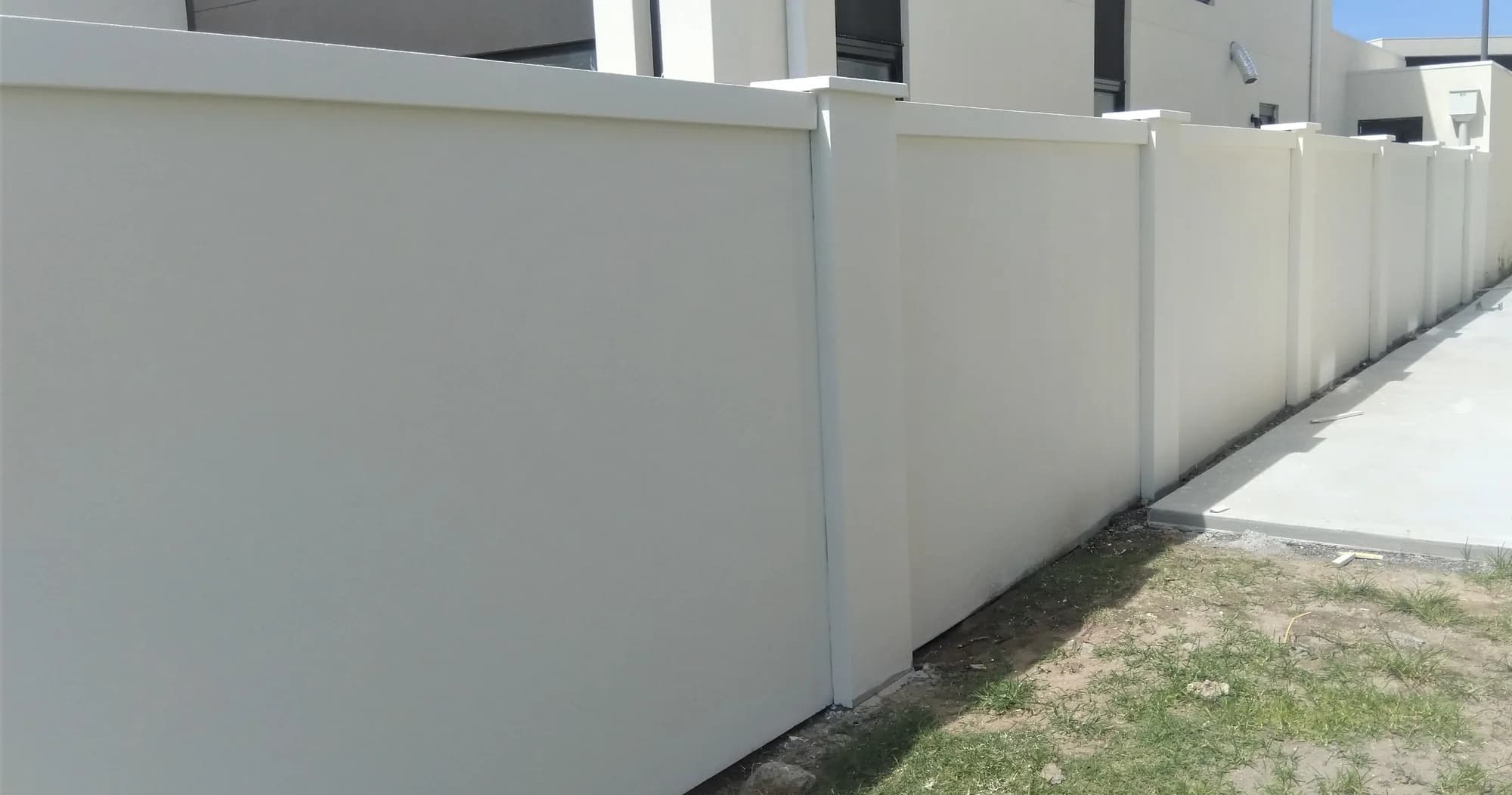

Anchor Panel & Piers

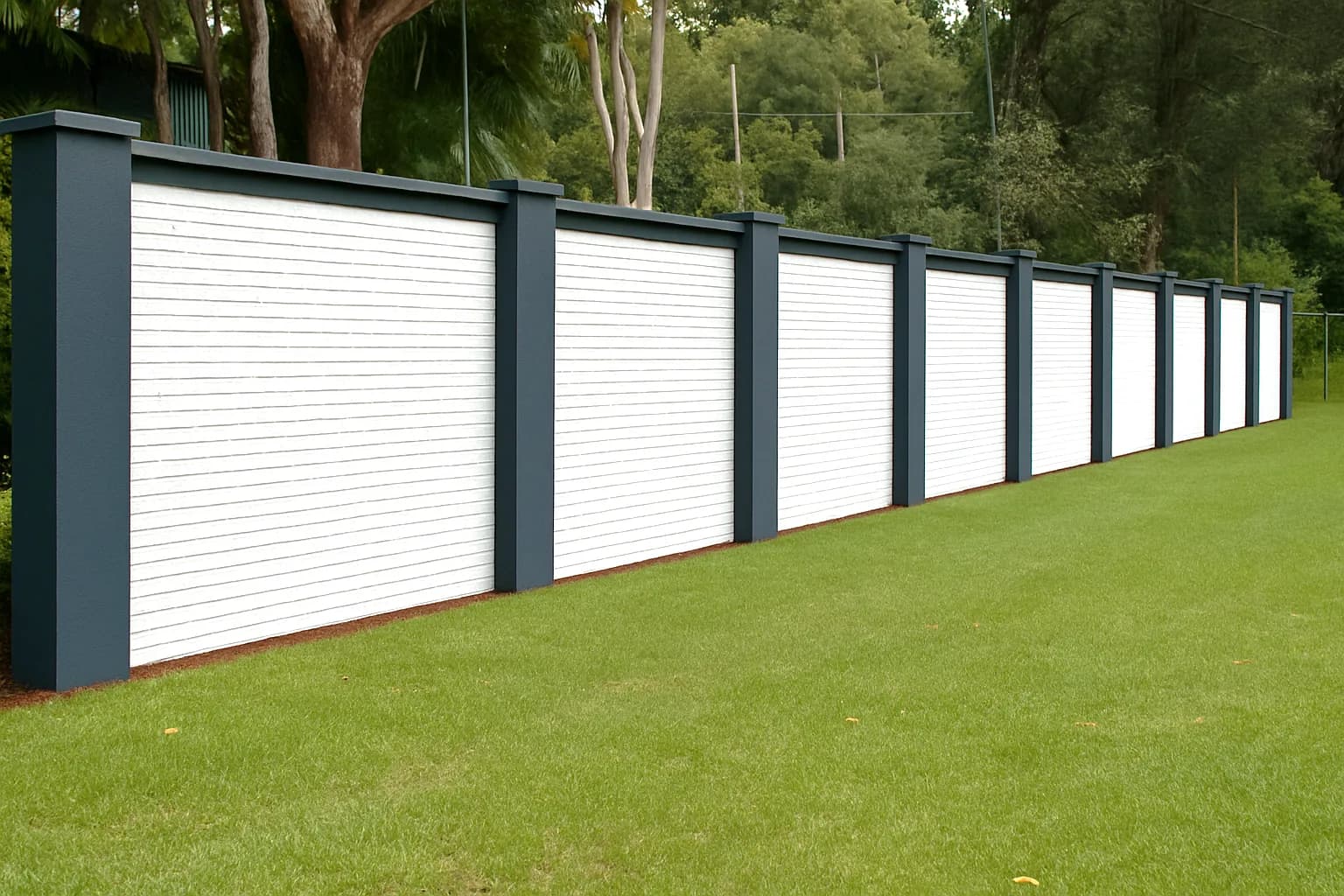

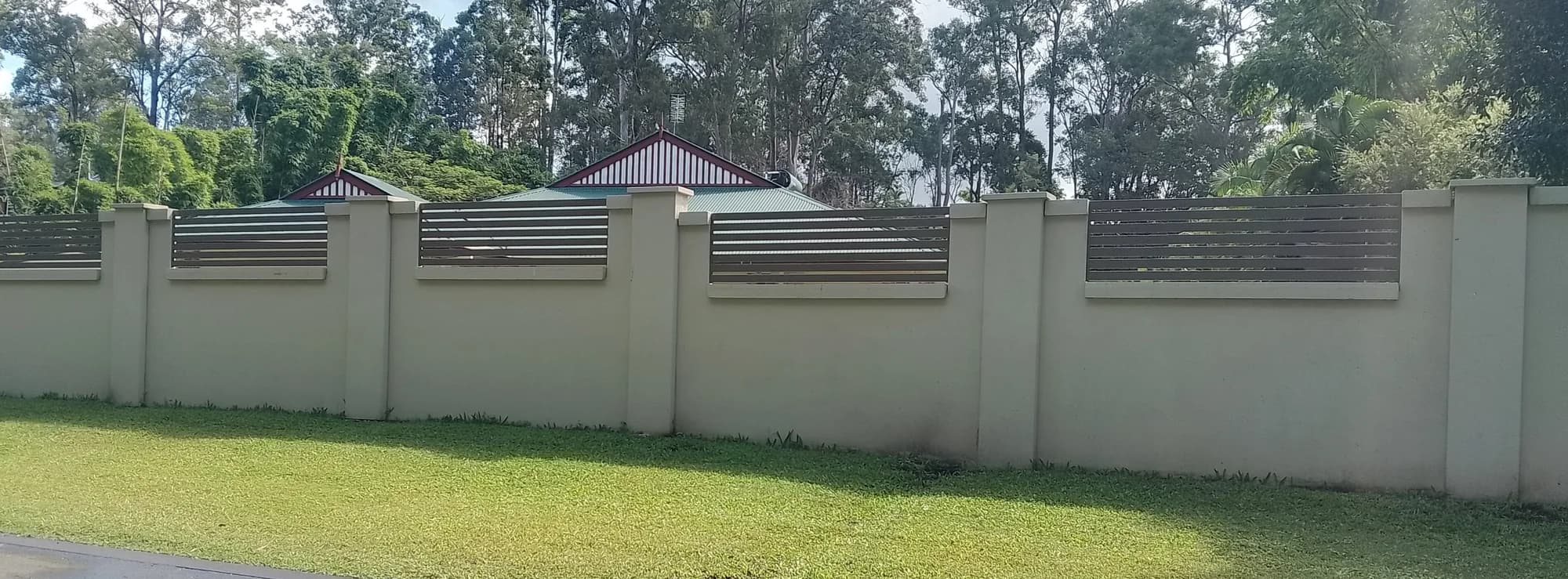

Panels & Piers Style
- Height is 1.8 and 2m to the top of the panel.
- The Piers are a little higher depending on which cap is used. There are 4 styles.
- Std Pier spacing is 3 meters centre to centre.
- All parts are made from solid reinforced concrete.
- The panels are held firmly in the pier so they do not rattle in the wind.
- Footings are only at the Piers.
Finish options
- Smooth Concrete Finish

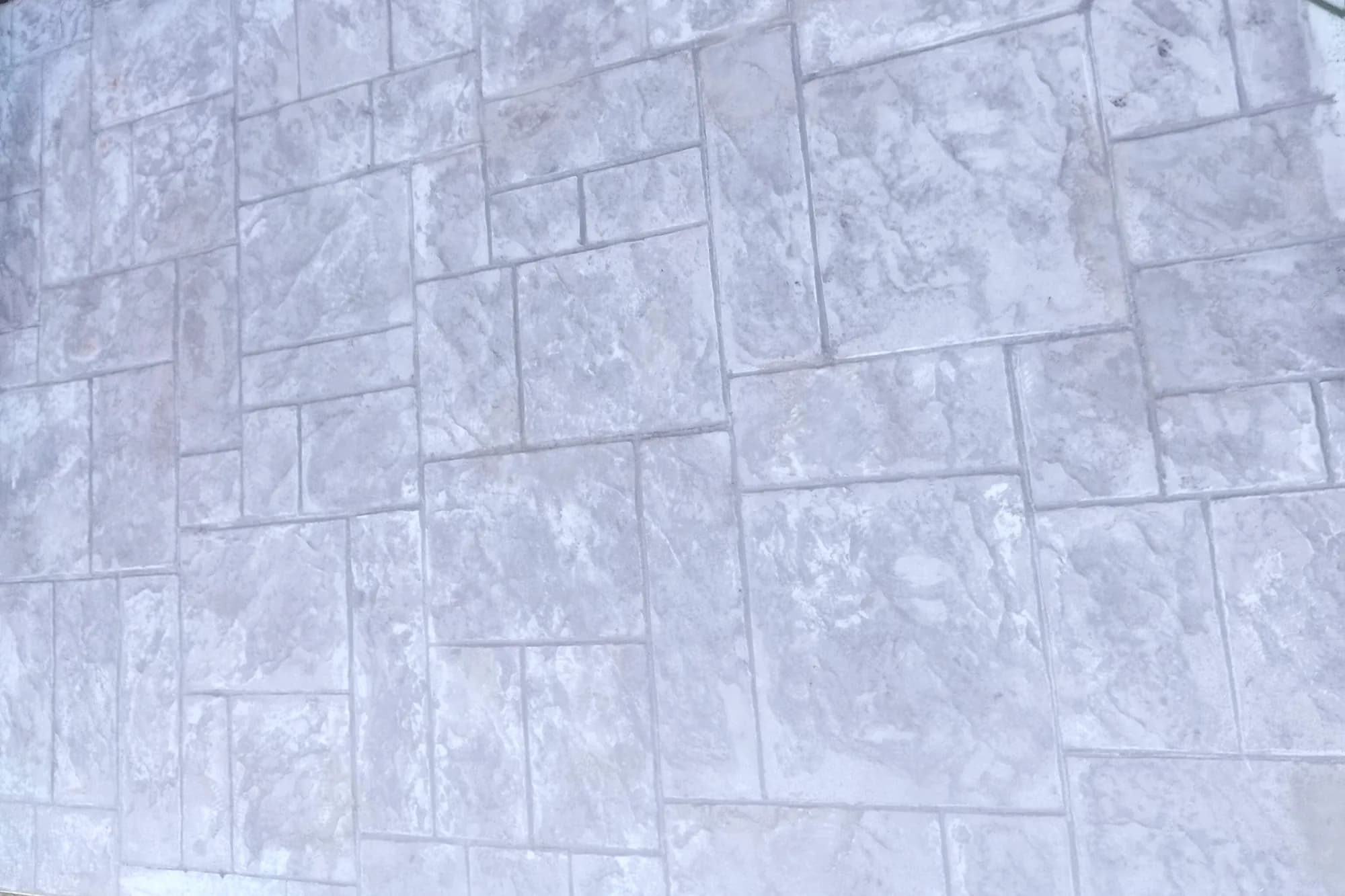

- Ashlar Slate Pattern
- Natural Stacked Stone Pattern
Fencewise
This is What you Get.
- Steel reinforced concrete components.
- Choice of pier caps.

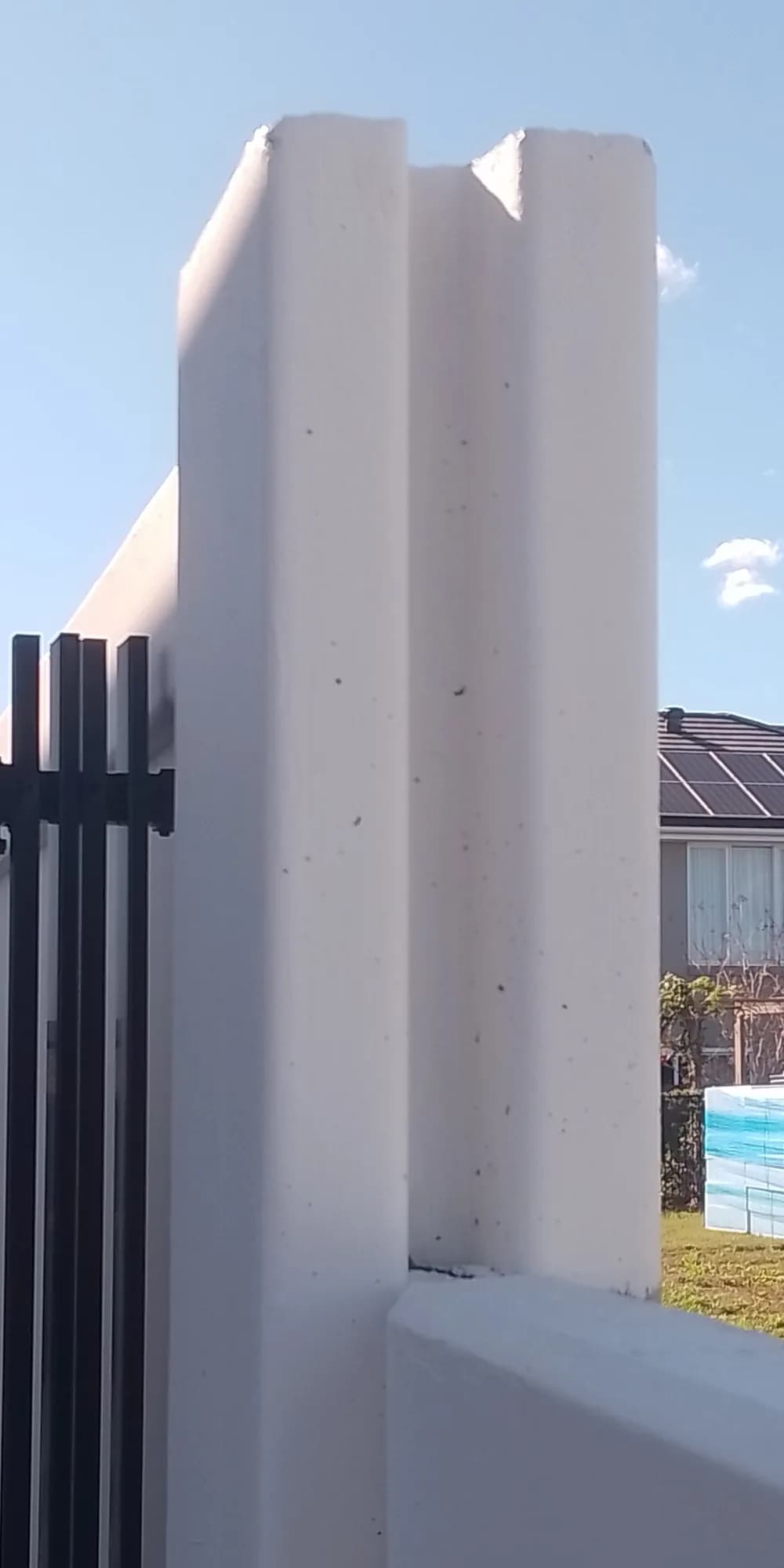

- Quality detailing.
- High standard of finish.
Others
What you Don't Get.
- This Fence is Not One of Ours
- Rough Work

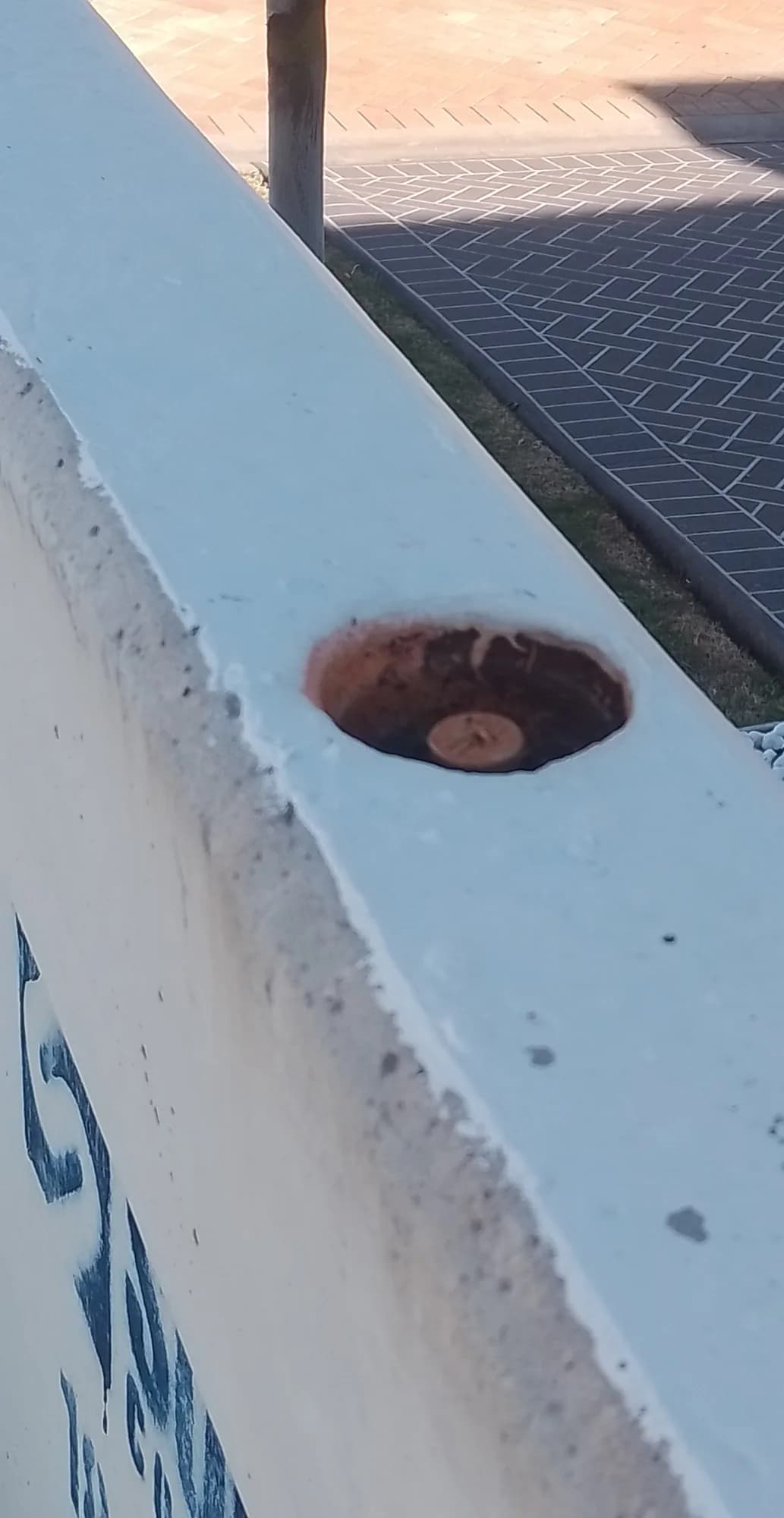

- Left open to Rust
Why it matters
What's Different About Our Fences And Why it Matters
What we use

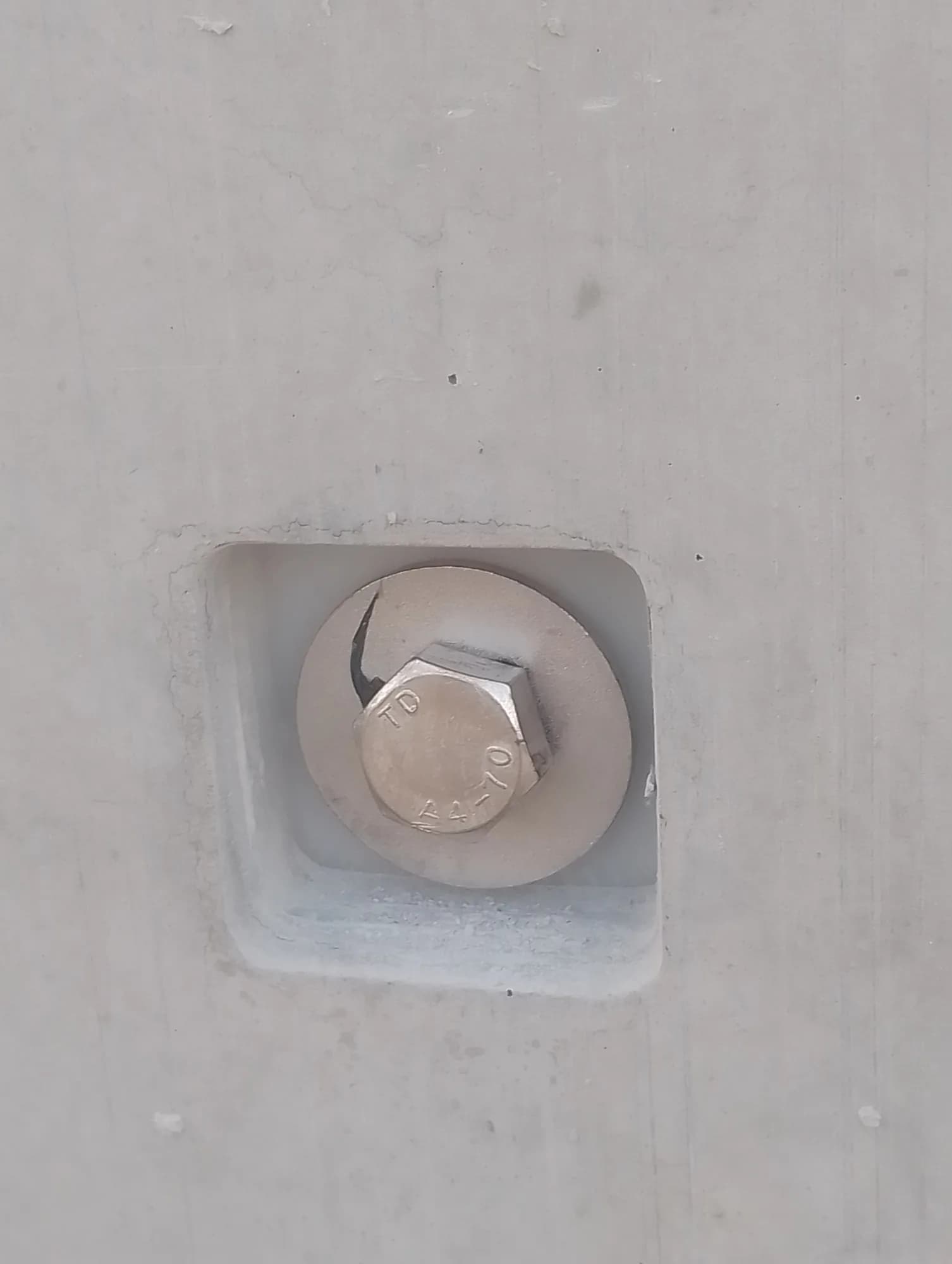

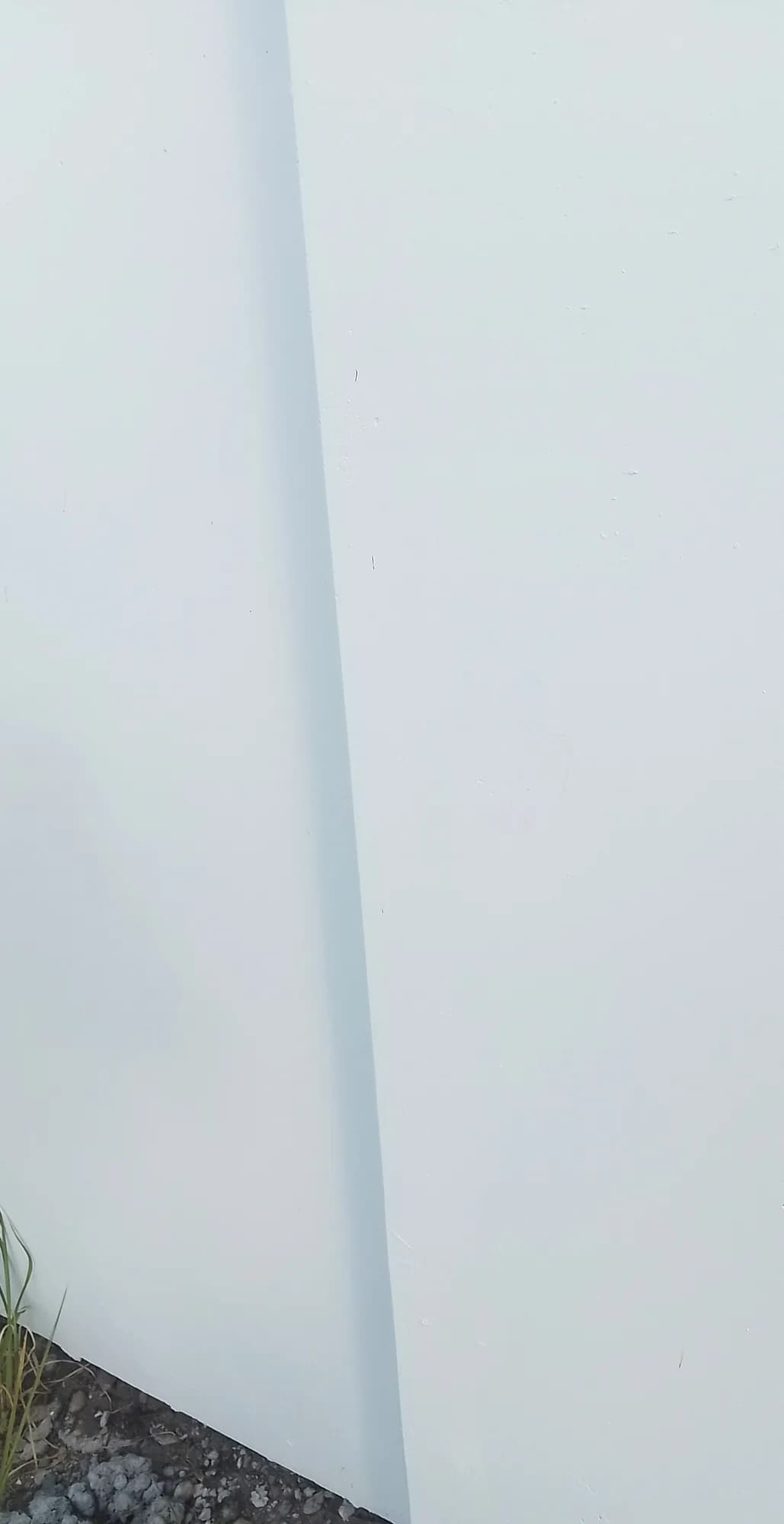

The Joining Method We Use

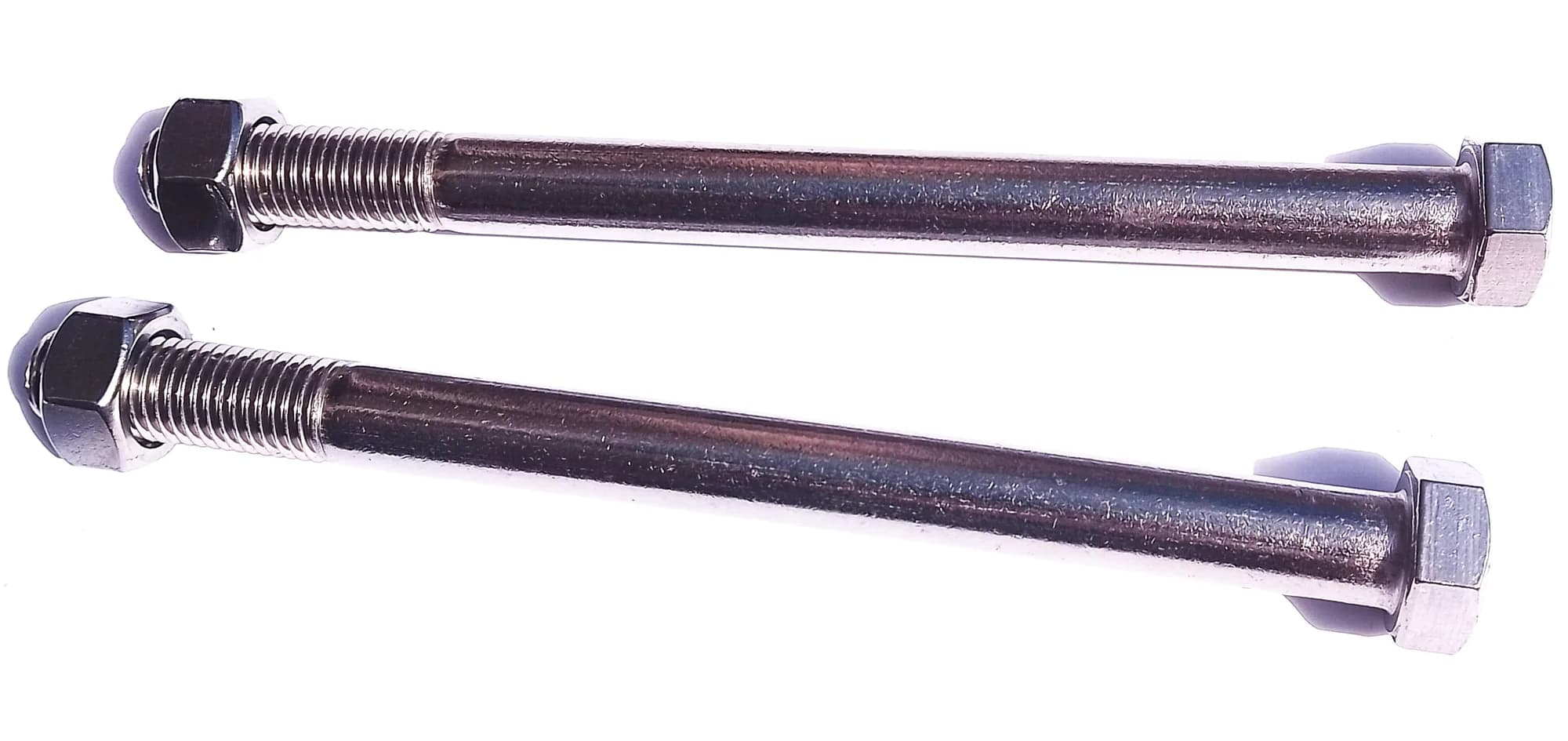

We bolt our panels together with marine grade stainless steel bolts. They can never come apart and will retain the structural integrity forever. We are the only ones that use this method.
After install, the bolts are covered over and cannot be seen. Indistinguishable from the rest of the panel when painted.
Because the bolt hole is larger than the bolt, it allows the panels to move laterally as the concrete expands and shrinks, as concrete does. That's why there are cuts in your driveway and footpaths. It's called a control joint and prevents the panels from cracking, letting water in, and thereby starting corrosion of the reinforcing. Concrete Cancer.
What we don't use

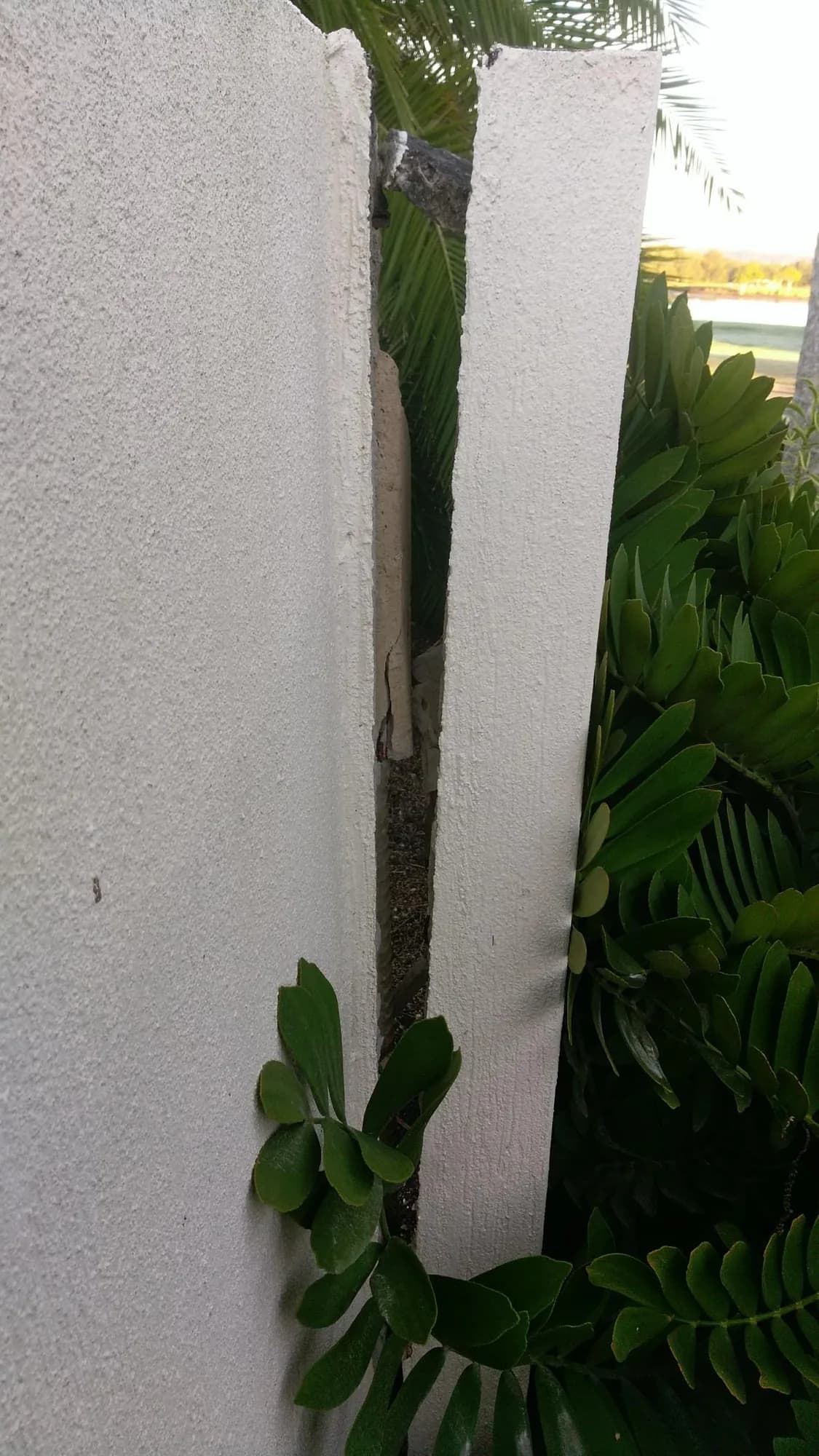

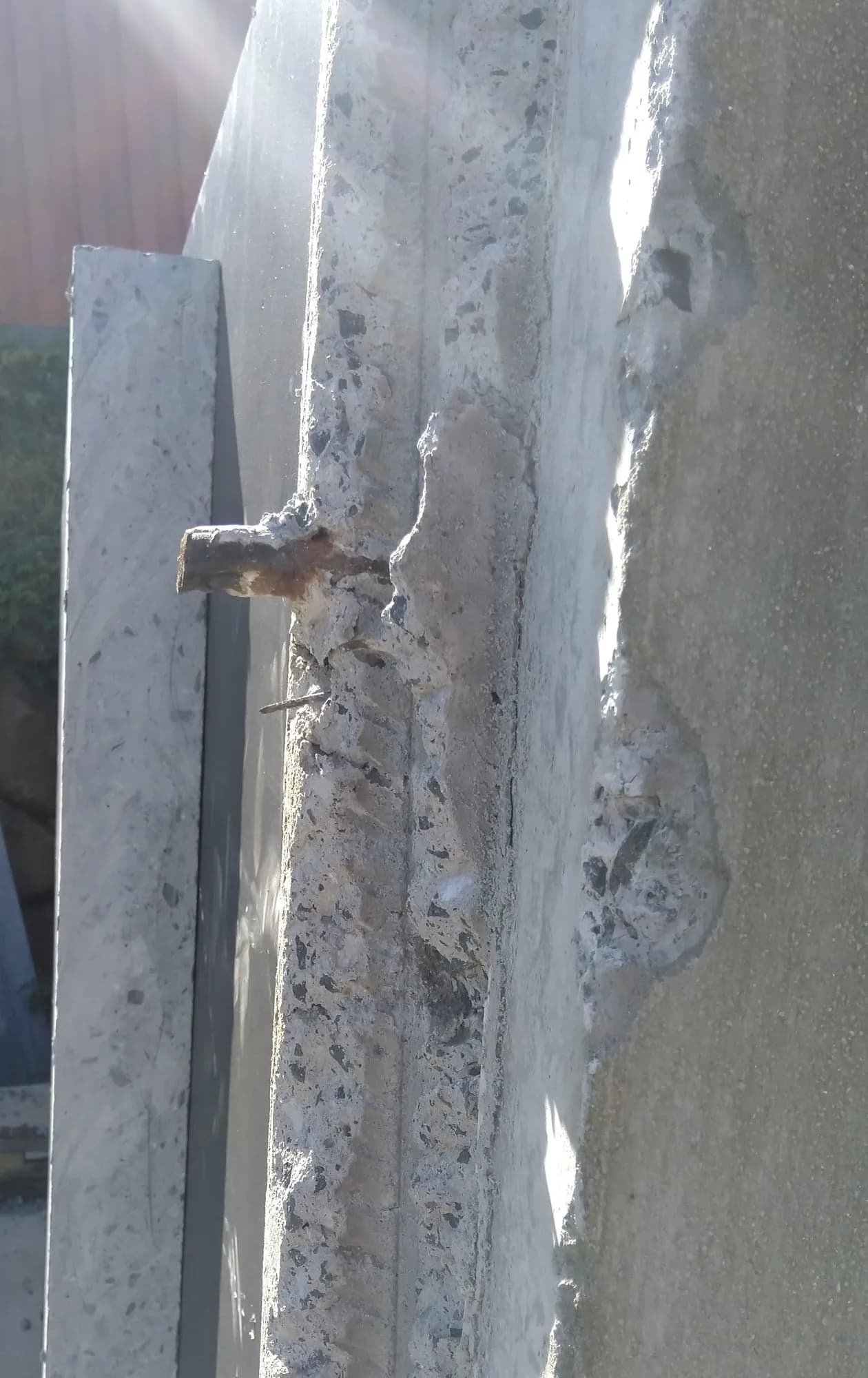

The Joining Method We don't Use

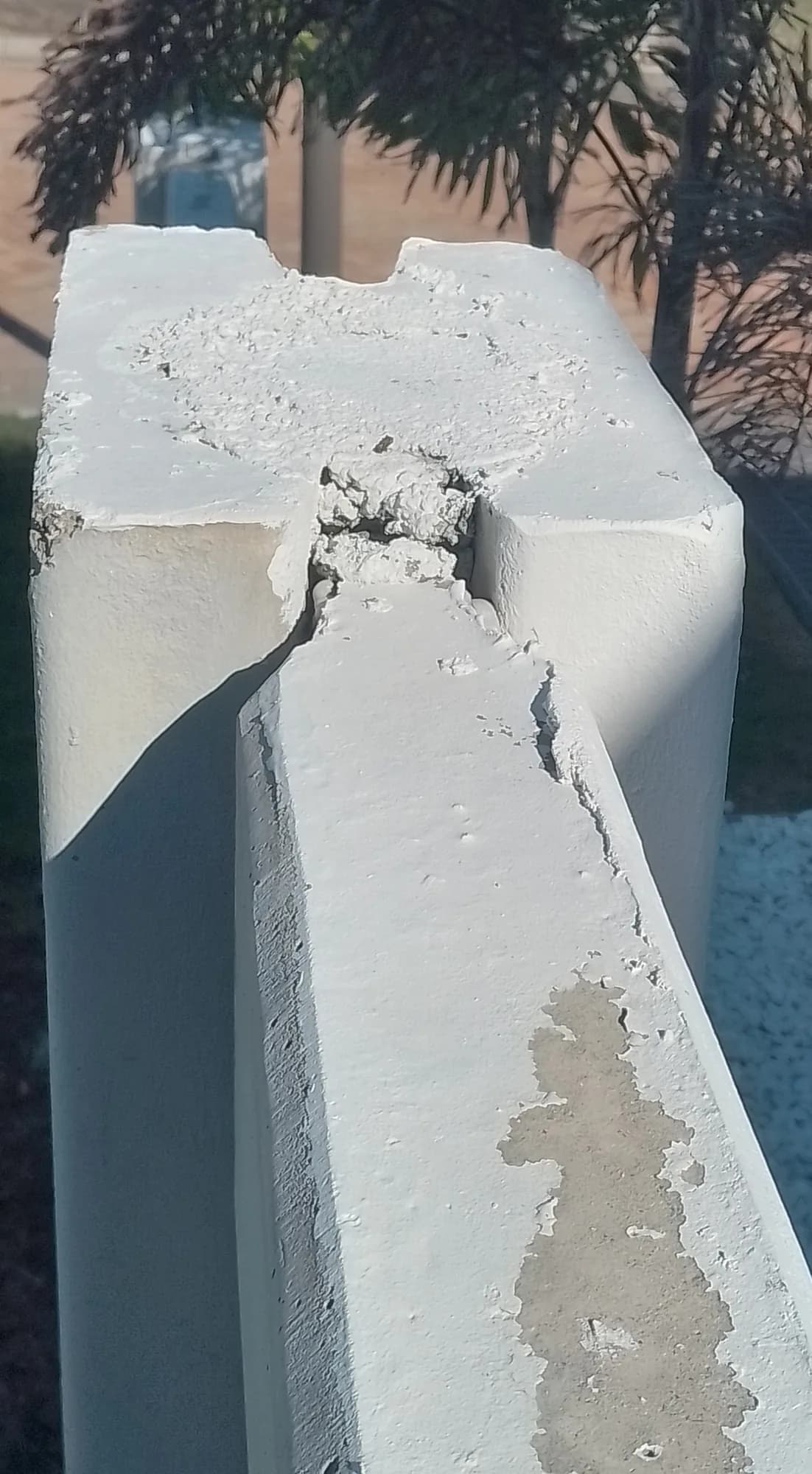

Others use what is known as the "pin and glue" method to join their panels. A hole is drilled through one panel into the panel to be joined. A short piece of rebar is then glued in to hold them together. Unfortunately, this also prevents the panels from moving laterally and will lead to some panels cracking or separating at the joint over time. Fence shown here is not ours. This is why we don't use this method.
Pricing
Gold Coast Urban Area
Inline Panels
- Joining cost
- $400 per join
Panels butt together and are flush on one side. There are 550mm wide joining pieces on the other side at each join. Each standard panel covers 6.1m.
Raked Panels
- Raked panels (sloped / angled)
- Priced individually
Used on slopes too steep for steps. Raked panels maintain an equal height above the ground along the top.
Special Made Panels
- Over 3m long
- +$165 per panel
- Under 3m long
- $330 per panel
- Irregular shaped panels
- Priced individually
Irregular shaped panels are considered special panels.
Std Panels
- 1.5m height
- $340 / lineal metre (incl. GST)
- 1.8m height
- $360 / lineal metre (incl. GST)
- 2.0m height
- $390 / lineal metre (incl. GST)
Rectangular panels, 6.1m long, covering 5.8m along the ground. Overlap joins of 300mm. There is one footing every 5.8m. Ground must be straight, level, and free of objects. Minimum order is 24m at this price.
Steps
- Single Step / Double Step
- Ideal for gentle slopes
- Raked
- Used when too steep for steps
